PRODUCTS Art Deco Olive Knuckle Hinge Solid Forged Brass
1 / 2
art-deco-olive-knuckle-hinge-solid-forged-brass-12.jpg Image 1 of 2
Art+Deco+Olive+Knuckle+Hinge.png Image 2 of 2

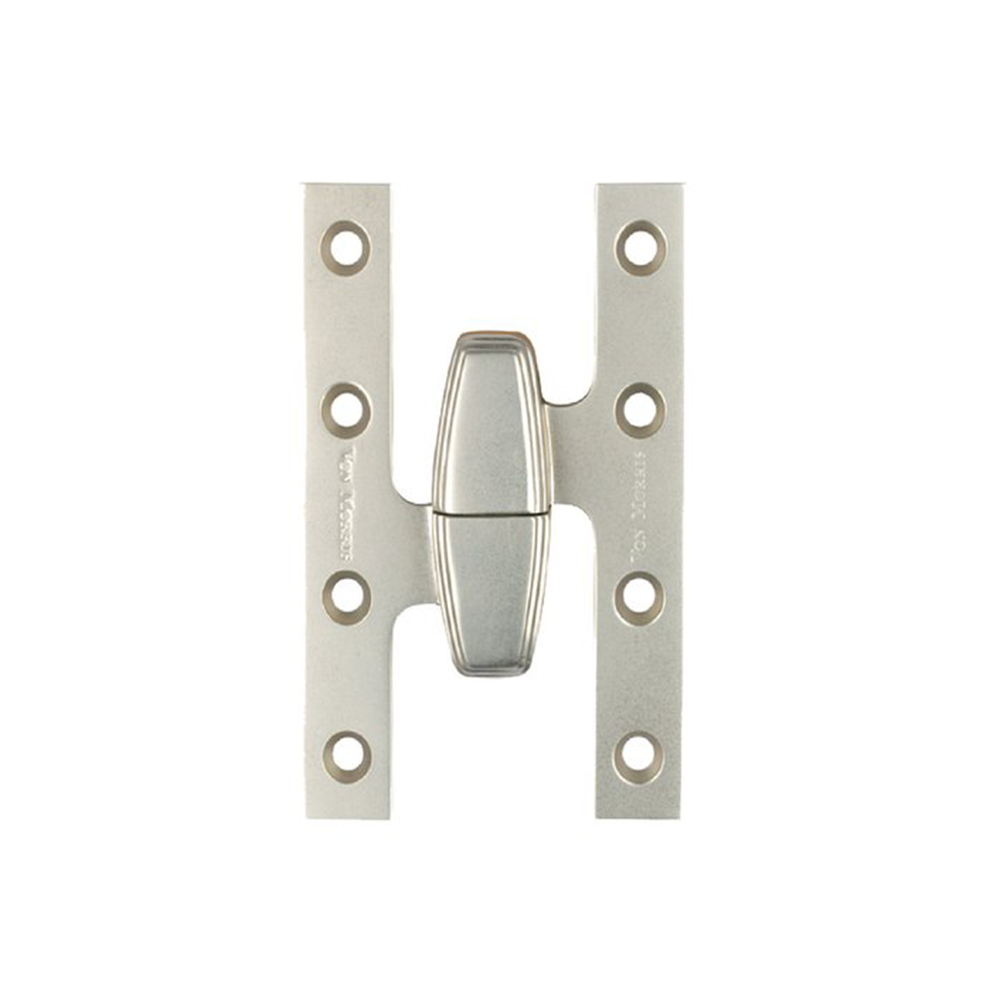

Art Deco Olive Knuckle Hinge Solid Forged Brass

SGD 0.00

Classic Art Deco Design
Solid Forged Brass
Hand Polished
Concealed Stainless Steel Bearing
All Art Deco Olive Knuckle Hinges are Handed. Specify Hand of Hinge When Ordering

Art Deco Olive Knuckle Hinge Sizes:
L 5.0" W 3.250" Gauge 0.169" Screw 12 x 125"
L 6.0" W 3.875" Gauge 0.203" Screw 12 x 125"
L 6.0" W 4.000" Gauge 0.255" Screw 12 x 125"
L 6.0" W 4.500" Gauge 0.255" Screw 12 x 125"
L 6.5" W 5.000" Gauge 0.255" Screw 12 x 125"

Item Numbers

16-5032 - 5.0" X 3.2" Art Deco Olive Knuckle Hinge
16-6038 - 6.0" X 3.8" Art Deco Olive Knuckle Hinge
16-6040 - 6.0" X 4.0" Art Deco Olive Knuckle Hinge
16-6045 - 6.0" X 4.5" Art Deco Olive Knuckle Hinge
16-6050 - 6.0" X 5.0" Art Deco Olive Knuckle Hinge

Category: Specialty Hinges
Suited: Yes
Collection: Art Deco

Quantity:
Add To Cart

Classic Art Deco Design
Solid Forged Brass
Hand Polished
Concealed Stainless Steel Bearing
All Art Deco Olive Knuckle Hinges are Handed. Specify Hand of Hinge When Ordering

Art Deco Olive Knuckle Hinge Sizes:
L 5.0" W 3.250" Gauge 0.169" Screw 12 x 125"
L 6.0" W 3.875" Gauge 0.203" Screw 12 x 125"
L 6.0" W 4.000" Gauge 0.255" Screw 12 x 125"
L 6.0" W 4.500" Gauge 0.255" Screw 12 x 125"
L 6.5" W 5.000" Gauge 0.255" Screw 12 x 125"

Item Numbers

16-5032 - 5.0" X 3.2" Art Deco Olive Knuckle Hinge
16-6038 - 6.0" X 3.8" Art Deco Olive Knuckle Hinge
16-6040 - 6.0" X 4.0" Art Deco Olive Knuckle Hinge
16-6045 - 6.0" X 4.5" Art Deco Olive Knuckle Hinge
16-6050 - 6.0" X 5.0" Art Deco Olive Knuckle Hinge

Category: Specialty Hinges
Suited: Yes
Collection: Art Deco

Classic Art Deco Design
Solid Forged Brass
Hand Polished
Concealed Stainless Steel Bearing
All Art Deco Olive Knuckle Hinges are Handed. Specify Hand of Hinge When Ordering

Art Deco Olive Knuckle Hinge Sizes:
L 5.0" W 3.250" Gauge 0.169" Screw 12 x 125"
L 6.0" W 3.875" Gauge 0.203" Screw 12 x 125"
L 6.0" W 4.000" Gauge 0.255" Screw 12 x 125"
L 6.0" W 4.500" Gauge 0.255" Screw 12 x 125"
L 6.5" W 5.000" Gauge 0.255" Screw 12 x 125"

Item Numbers

16-5032 - 5.0" X 3.2" Art Deco Olive Knuckle Hinge
16-6038 - 6.0" X 3.8" Art Deco Olive Knuckle Hinge
16-6040 - 6.0" X 4.0" Art Deco Olive Knuckle Hinge
16-6045 - 6.0" X 4.5" Art Deco Olive Knuckle Hinge
16-6050 - 6.0" X 5.0" Art Deco Olive Knuckle Hinge

Category: Specialty Hinges
Suited: Yes
Collection: Art Deco

Description
Art Deco Olive Knuckle Hinges are priced and sold as eaches.
Concealed Stainless Steel Bearing.
Solid Forged Brass.
Equipped with one concealed, precision machined, anti-friction bearing assembly per hinge.
Ball Bearings are machined from 300 series Stainless Steel and employ Stainless Steel balls.
All pins are precision machined from 300 series Stainless Steel.
All Art Deco Olive Knuckle hinges are handed. Be sure to specify hand of hinge when ordering.
Features
Custom Finished to order. Please call Customer Service for lead times and availability.
Hinge Body:
Hinge is manufactured of solid forged brass.
Ball Bearings:
Each hinge is equipped with one precision machined anti-friction bearing assembly. The ball bearing carries thrust loads along the axis of the pin and consists of two 300 series Stainless Steel races with Stainless Steel balls in a brass shell. A needle bearing carries axial loads perpendicular to the pin. The construction results in an extremely durable, long life hinge which is able to withstand years of hard use and corrosive environments. These bearings greatly increase both the lateral and vertical load bearing capability of the hinge and therefore increase hinge life.
Finish:
Hinges are individually hand polished assuring an even finish with no unpolished areas. Von Morris Art Deco Olive Knuckle hinges are available in over 30 standard finishes. Custom finishing is available. Please refer to the Price List.
Pins:
Pins are machined from 300 series Stainless Steel for high durability and resistance to rust. They are permanently installed in one half of the hinge. The exposed end is rounded to facilitate re-assembly.
Fasteners:
All hinges are provided with type “A” tapping screws. These are solid brass, flat head, counter sunk, undercut phillips head screws. Screws are bagged eight per bag.
Number of Hinges:
For doors up to 89 inches, use three hinges. For each additional 30 inches or fraction thereof, use one additional hinge.
Packing:
Two hinges per box with screws. Each hinge is poly bagged to prevent scratching.
Handing & Specifying:
These hinges are handed. Please be sure to specify hand of hinges when ordering. Olive Knuckle Hinges are priced and sold as eaches.
Downloads
Art Deco Olive Knuckle Hinge Tearsheet
