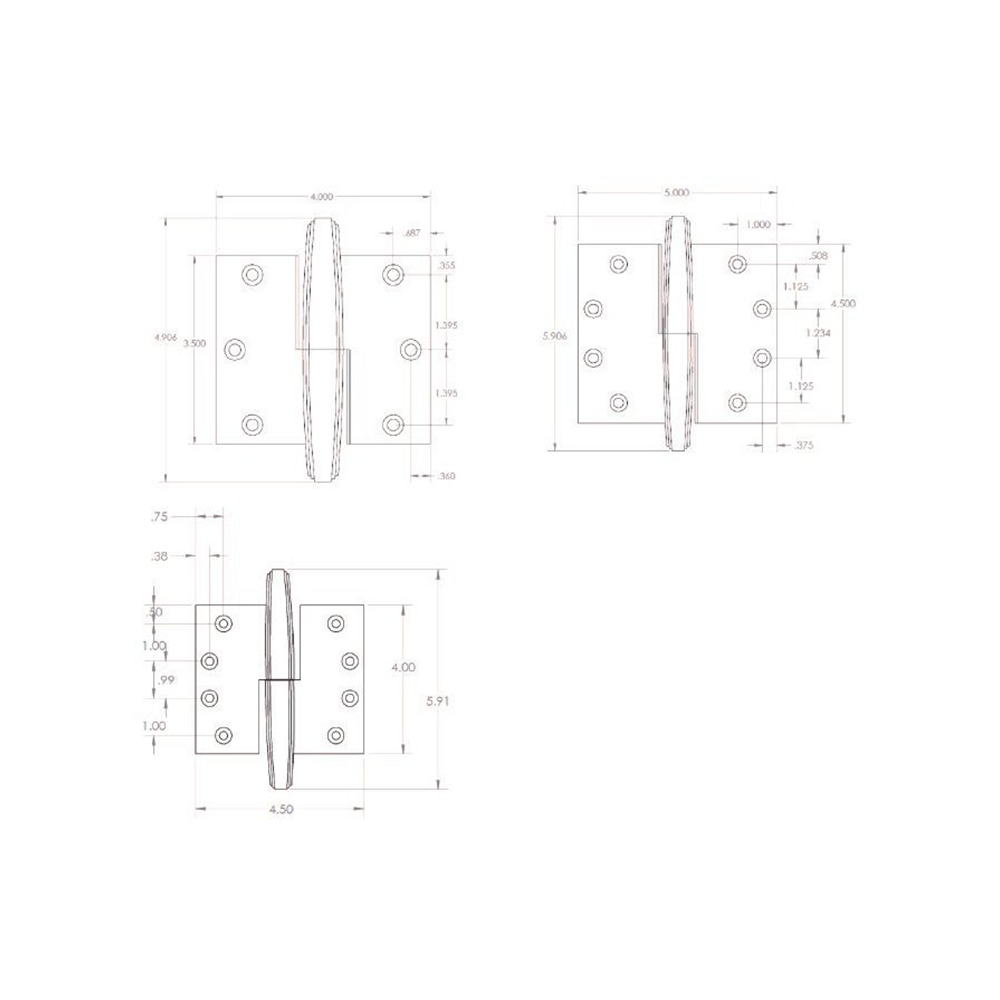

Art Deco Two Knuckle Lift Off Hinge Ball Bearing

Hinge Body is manufactured from CDA alloy 38500 Brass. It is machined from extruded bar, resulting in high strength and precision tolerances. All hinges are beveled at the barrel to provide a close fit when the hinge is both open and closed.

Hinges are individually hand polished assuring an even finish with no unpolished areas. Von Morris extruded hinges are available in over 30 finishes. Please refer to the price list.

All hinges are provided with type "A" tapping screws. These are solid brass, flat head, counter sunk, undercut Phillis head screws. Screws are bagged either six per bag or eight per bag to facilitate the sale of single hinges. #12 machine screws available upon request.

Each hinge is equipped with one concealed precision machined Stainless Steel ball bearing assembly. The two races are machined from brass. The balls are made from through hardened Stainless Steel. They are recommended for doors which receive high frequency use . They are always recommended for doors which are equipped with a door closer.

For doors up to 89 inches, use three hinges. For each additional 30 inches or fraction thereof, use one additional hinge.
