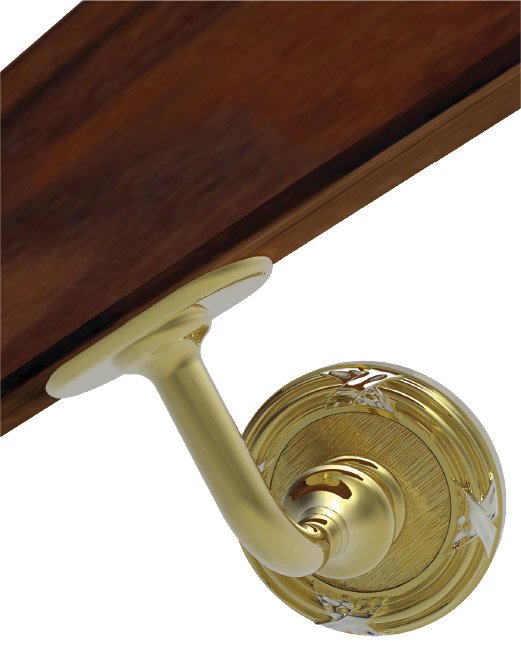

Handrail Bracket with Ribbon & Reed Rose

Von Morris Handrail Brackets use an innovative design allowing you to use the base bracket and elbow with any Von Morris Rose. The base attaches to the wall with a 5/16" x 2.0" hanger bolt and three #10 x 2.0" steel wood screws. The rose is then attached to the base plate with a retainer nut. The base allows for 45° of rotation so that roses can be properly aligned, yet prevents full rotation. The elbow fits over the large diameter boss on the base and is secured with a set screw. The saddle is attached to bottom of the rail with two #12 x 1.25" wood screws. Handrail Brackets are supplied standard for flat bottom rail. A radius adapter saddle is available for an additional charge. Screws for the radius adapter saddle are offset equally from the centerline to provide additional stability and to prevent the rail from rocking. Any Von Morris Rose can be used with this Handrail Bracket.

Projection: Wall to centerline of railing: 2.625".

Clearance: 1.625" using 2.0" outside diameter rail.

Standard Saddle: 1.0" wide x 2.0" long - flat.

5/16" x 2.0" hanger bolt and three #12 x 2.0" steel screws.
