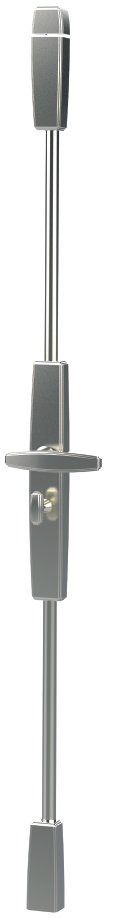

Art Deco Locking Cremone Bolt and Art Deco Dummy

Spindle Height:

Standard Lengths:

Spindle:

Strikes:

Von Morris Cremone Bolts feature forged, solid brass case and guides with an internal mechanism of brass and stainless steel. The Locking Cremone case is very narrow, less than 1.5", for use on narrow stiles of French doors and windows. Cremone Bolt locks from the exterior with a rim cylinder and inside with a turnpiece. Cremone case contains a cassette mechanism that can be handed simply by reversing the cassette. The Cremone can also be easily changed from lever operation (90° rotation) to knob operation (180°) simply by relocating the spindle. Shoot Bolts are attached to the Cremone mechanism with machine screws. These machine screws are covered with interchangeable Frogs. Cremone Bolt design is very clean, featuring concealed Shoot Bolt guides. Various Frogs are available to allow you to suite the Cremone Bolt. Includes Art Deco Knob or Lever

End Guides have a flat spring operating on the front of the bolt to prevent rattling. The length of the Guide and placement of the spring conceals any scratches on the bolt caused by the spring. This End Guide design allows the bolts to be installed on the door and then cut to length at the job site. Two Frogs are attached to the ends of the Cremone case with #8 x 1.0" screws and hide the attachment of the Shoot Bolts. One Frog is attached to the end of each End Guide.

Length from end of Frog to end of Frog: 10.04"

Width: 1.463"

Height to edge of case: 0.787"

Height to face of knob/lever boss: 1.024"

Spindle hub to turnpiece spacing: 2.250"

Spindle hub to cylinder spacing: 2.467"

Knob - 180° rotation.

Lever - 90° rotation.

Knob Operation – 1.00"

Lever Operation – 0.75"
